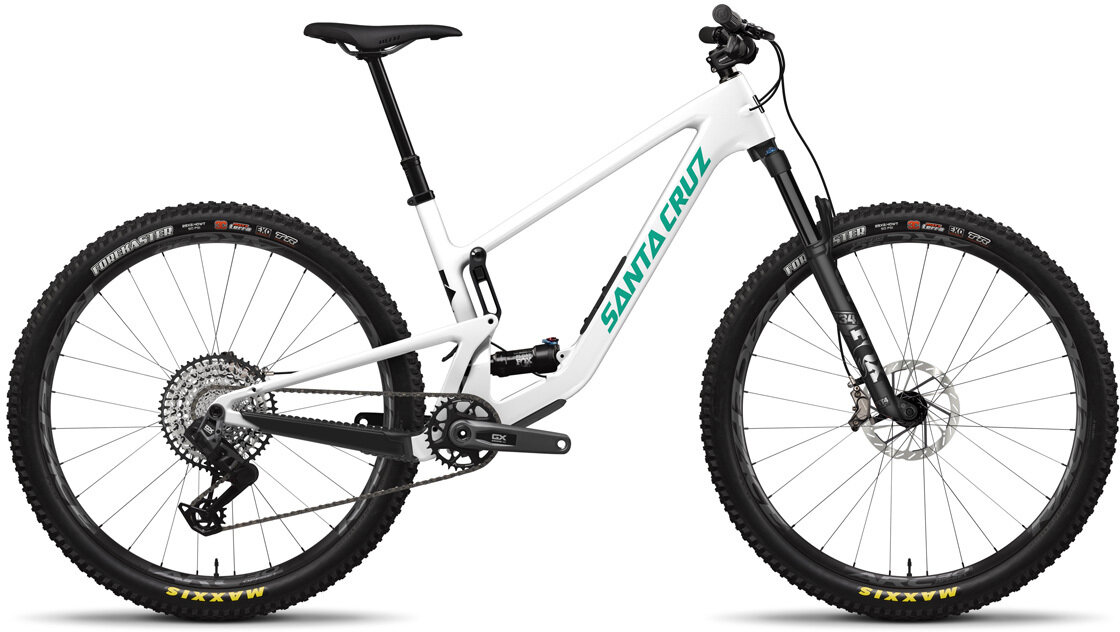

Santa Cruz Tallboy 5 C 29 GX AXS

Santa Cruz Tallboy 5 C 29 GX AXS
  • Color: Gloss White
$4,799.98
$6,899.00
Color: Gloss White
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

Details

The Tallboy has earned a loyal following amongst those who seek a go-to bike that will hold up to the relentless hammering of "power hour" hot laps or long days in the saddle harvesting the best trails.

Chainstay length and seat angle are matched to the frame size (STA steepens and rear centre grows as frame size increases) so that every rider, no matter what height, gets the same balance of geometry and handling characteristics.

We tailor stiffness for every size to make sure everyone gets the same ride quality. Bigger riders means greater stresses on larger frames, but that's remedied with our size-specific frame stiffness tunes.

FEATURES:

We mimicked our longer travel geometry to create a bike with a 65.5-degree head-angle, generous front center, and short offset fork.

120mm of lower link-driven VPP suspension is designed to handle tough climbs and yet still take on high-speed descending.

The reduced rolling resistance and larger footprint of 29-inch wheels inspires confidence and helps riders cover ground efficiently.

Proportional Geometry: seat tube angle steepens and rear center grows as frame size increases.

Glovebox: Stows all your essentials so you can ditch the pack on your lunch laps or always be ready with the fix.

Specs

Frame Carbon C 29"
Fork FOX 34 Float Performance Elite, 130mm
Rear Shock FOX Float Performance Elite, 190x45
Rims/Wheels RaceFace ARC Offset 30 29"
Hubs F: DT Swiss 370, 15x110, 6-Bolt, 28h R: DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Tires F: Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO R: Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
Crankset SRAM GX Eagle DUB T-Type
Chainwheel SRAM GX Eagle T-Type, 32t
Bottom Bracket SRAM DUB 73mm MTB Wide BB
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Rear Cogs SRAM GX Eagle T-Type, 10-52t
Shifters SRAM AXS Pod Bridge
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Tape/Grips Santa Cruz Bicycles House Grips
Stem Burgtec Enduro MK3, 42mm
Brakes SRAM Level Bronze Stealth 4-Piston
Saddle WTB Silverado Medium, CroMo
Seat Post OneUp V2 Dropper Post, 31.6 or Rock- Shox Reverb, 31.6or Fox Transfer, 31.6

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss White / Medium 192219344362 58-24274-163-3-796-192101 TAL23904092S
Gloss White / Large 192219344409 58-24274-163-4-796-192101 TAL23369549S
Gloss White / X-Large 192219344447 58-24274-163-5-796-192101 TAL23518678S
