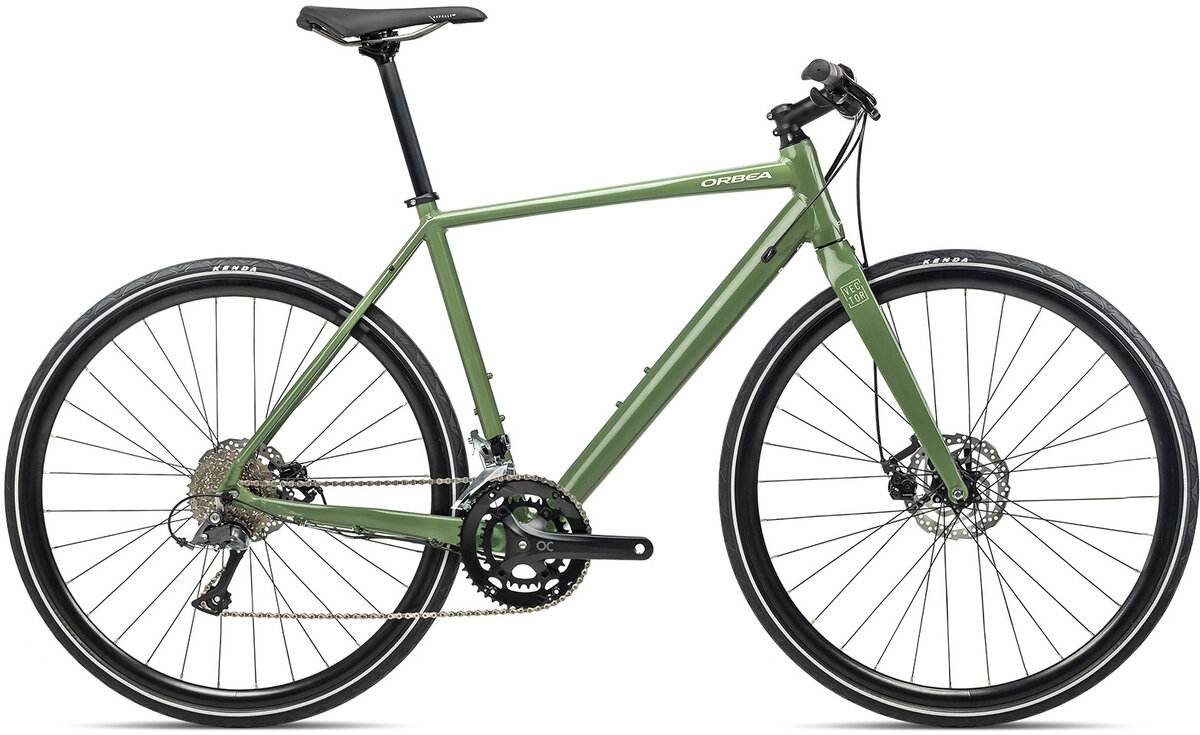

Orbea Vector 30

Orbea Vector 30
  • Color: Green
  • Color: Red
  • Color: Blue
  • Color: Night Black
Color: Green
Size: Select size
Please select options Unavailable


Vector is at home in the city or on open roads winding through the hills. A blend of low weight and durability usually reserved for more expensive machines, Vector is the perfect tool for doing whatever you like - whether it’s commuting from work or taking a few extra minutes for a detour in the park. Vector is Orbea's new multi-role bike that emphasizes versatility. A companion for every part of your life.

- Lightweight Orbea Urban Speed aluminum frame and fork
- Orbea Airline Corsa Disc wheelset
- 8-speed Shimano Claris components
- Shimano mechanical disc brakes


Frame Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,
Fork Speed 400mm Alloy Flat mount
Headset VP-Z104PD 1-1/8" Semi-Cartridge
Rims/Wheels Orbea Airline Corsa Disc 700X19c
Tires Kenda K1098 700x32 Reflective Tape
Crankset Prowheel 32x48 Steel Custom logo
Chain KMC X8
Front Derailleur Shimano Claris FD-R2000-F
Rear Derailleur Shimano Claris RD-R2000-GS
Rear Cogs Shimano HG50 11-34t 8-Speed
Shifters Shimano Claris SL-R2000
Handlebars Alloy 31.8mm Riser 640mm
Brakes Shimano TX805 Mechanical Disc
Saddle Selle Royal Asphalt GR
Seat Post Alloy 27.2 Offset 0

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Green / X-Small 8434446759444 L40643RK ORB1849522N
Red / X-Small 8434446759451 L40643RL ORB18289170D
Blue / X-Small 8434446759468 L40643RM ORB18483741U
Night Black / X-Small 8434446759437 L40643RJ ORB18174266N
Night Black / Small 8434446759475 L40648RJ ORB17414609N
