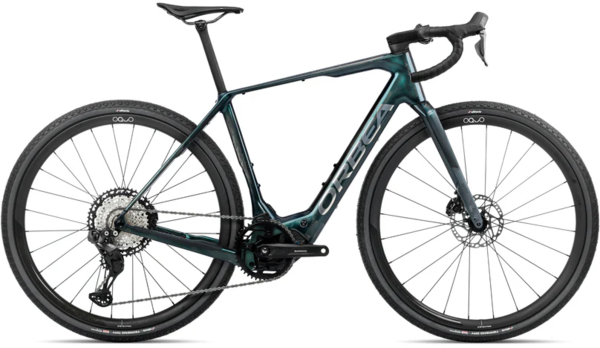

Orbea DEMO Denna M20i 20mph
Details
Demo bikes were used in trade show displays, media reviews, or test ridden at manufacturer sponsored demos. All demo bikes have been cleaned, tuned, and inspected by our mechanics and include the full manufacturer's warranty and Freewheel's New Bike Benefits. Please reach out if you have questions on paint and component wear prior to ordering. Components in image differ from actual specs. See full spec list for details.
The Orbea Denna M20i is a high-performance electric gravel bike built around a lightweight, smooth-riding OMR carbon frame engineered to enhance comfort without sacrificing pedaling efficiency or handling precision. It features a Shimano EP801 mid-drive motor with Orbea’s tuned RS Gen2 RC firmware, delivering responsive support and enough power to conquer up to 3,500 meters of climbing on a single charge from its integrated 420 Wh battery (expandable with an optional 210 Wh range extender). With generous clearance for tires up to 50mm, Shimano GRX RX822 electronic drivetrain, hydraulic RX820 disc brakes, and a gravel-ready wheelset and cockpit, the Denna M20i is versatile enough to tackle rough terrain, long distances, and adventurous rides
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 405 | 438 | 471 | 504 | 537 | 570 |
| Top Tube (EFF) | 531 | 542 | 558 | 570 | 587 | 599 |
| Head Tube | 110 | 131 | 152 | 178 | 199 | 220 |
| Chainstay | 425 | 425 | 425 | 425 | 425 | 425 |
| BB Drop | 78 | 78 | 78 | 76 | 76 | 76 |
| BB Height | 284.5 | 284.5 | 284.5 | 286.5 | 286.5 | 286.5 |
| Wheelbase | 1030 | 1033 | 1040 | 1054 | 1061 | 1068 |
| Head Angle | 70º | 70.5º | 71º | 71º | 71.5º | 72º |
| Seat Angle | 74.5º | 74º | 73.5º | 73.5º | 73º | 73º |
| Fork Offset – Rake | 55 | 55 | 55 | 55 | 55 | 55 |
| Standover | 738 | 765 | 792 | 819 | 846 | 873 |
| Reach | 390 | 390 | 395 | 400 | 405 | 410 |
| Stack | 526 | 548 | 570 | 592 | 614 | 636 |
| Fork Length | 390 | 390 | 390 | 390 | 390 | 390 |
| Trail Length | 73 | 70 | 67 | 67 | 63 | 60 |
| Size Designation | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Height (Inches) | 61.1” - 65.4” | 65.7” - 67.7” | 68.1” - 70.5” | 70.9” - 72.8” | 73.2” - 75.2” |
| Height (Centimeters) | 155-166cm | 167-172cm | 173-179cm | 180-185cm | 186-191cm |
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specs
| Frame | Orbea OMR Carbon, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing |
|---|---|
| Fork | Orbea Denna OMR ICR, full carbon, 1-1/8” - 1.5” tapered head tube compatible, Thru axle 12x100mm, thread M12xP1 |
| Wheels | Oquo Road Control RC25PRO, alloy rim, Zipp ZR1 hub, 25mm internal width, Sapim Sprint TCS Oxi spokes, 700C |
| Hubs | F: Orbea Thru Axle 12x100mm M12xP1 Hollow, R: Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded |
| Tires | Vittoria Terreno Dry Gravel G2.0 TLR 700x45c |
| Crankset | Shimano Steps EM600 |
| Shifters | Shimano GRX RX820 |
| Rear Derailleur | Shimano GRX RX822 GS |
| Cassette/Freewheel | Shimano CS-M7100 10-45t 12-Speed |
| Chain | Shimano M6100 |
| Brakes | Shimano RX820 Hydraulic disc |
| Handlebars | Easton EC90 AX Carbon, flare 16º, Di2 internal routing |
| Stem | OC Road Performance RP10, -8º |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Seatpost | OC Performance XP10 Carbon, 27.2mm, Setback 0 |
| Saddle | Selle San Marco Shortfit 2.0 Start Up Off Road |
| Motor | Shimano EP801 |
| Battery | Orbea Internal 420Wh |
| Controller/Display | EN600-L |
| Charger | Orbea 2nd Generation eBike Smart Charger 42V/2-4A |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Escape Green Gloss - Foggy Matt / Large | DS62007RE | DEM49994884T |
