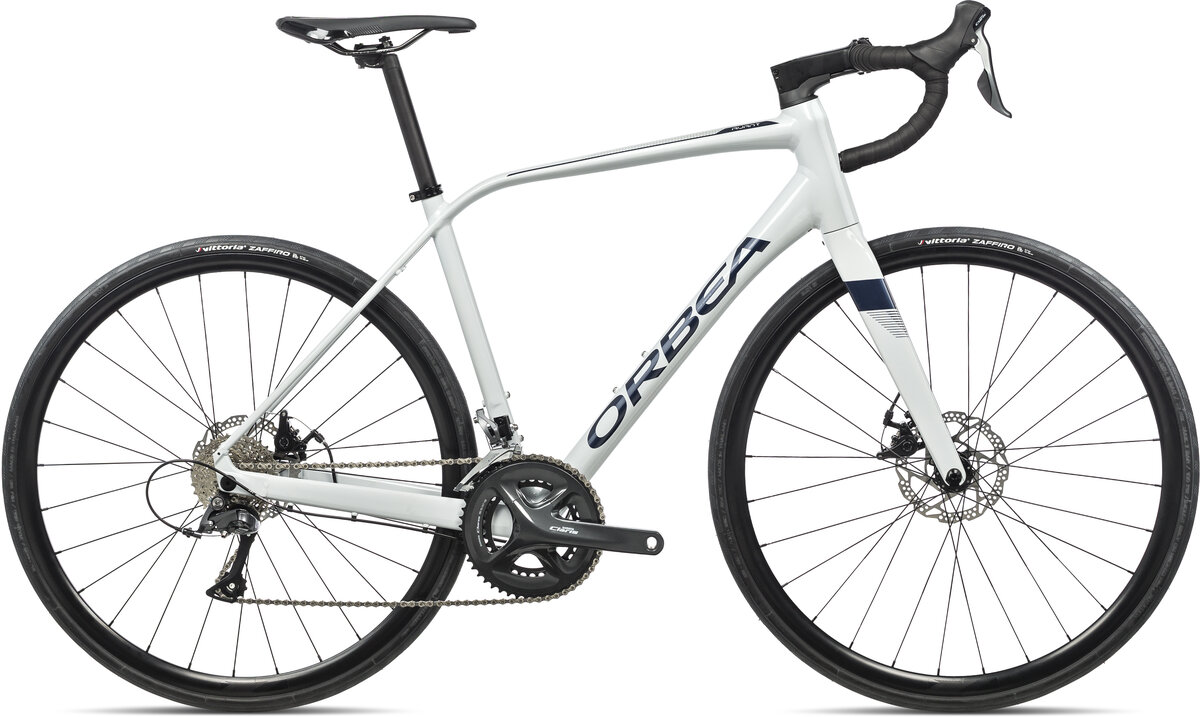

RIDING WITHIN REACH
Grab your Avant and fill your bottles before rolling out on your afternoon ride. No other machine can better help you enjoy the exhilaration of road cycling. The speed, freedom, and the views offered by quiet roads are all included free with every Avant—and you love it.
Avant Carbon Fork
The carbon layup and shaping of the Avant fork offers the best combination of elasticity, tire clearance, and torsional stiffness. The fork legs sport integrated fender mounts and ample tire clearance for even more versatility.
The new Avant receives the same level of design attention as our carbon frames - The tubes are butted and hydroformed with smooth, polished welds to match the dramatic look of the monocoque frame.
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.
|Frame||Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1.5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27.2mm, MMS system.|
|Fork||Orbea carbon fork 2021, aluminum steerer, 1-1/8" head tube|
|Headset||Acros Alloy 1-1/2" Internal Cable Routing|
Front: 100 x 12mm thru-axle
Rear: 142 x 12mm thru-axle
|Hubs||Shimano RS470 28H 12mm E-Thru hubset|
|Tires||Vittoria Zafiro V Rigid bead 700x28c|
|Crankset||Shimano Claris R2000 34x50t|
|Front Derailleur||Shimano Claris FD-R2000-F|
|Rear Derailleur||Shimano Claris RD-R2000-GS|
|Cassette/Rear Cogs||Shimano HG50 11-32t 8-Speed|
|Shifters||Shimano Claris ST-R2000|
|Handlebars||OC1 Road, reach 80mm, drop 125mm|
|Stem||OC1 31.8mm interface -6º|
|Brakes||Tektro MD-C550 Mechanical Disc|
|Saddle||Selle Royal Seta RS|
|Seat Post||Alloy 27.2 Offset 20|
* Subject to change without notice.
|White/Grey / 47cm||08434446786037||L10447BH||ORB19716586G|
|White/Grey / 53cm||08434446786129||L10453BH||ORB19729348G|
|White/Grey / 55cm||08434446786150||L10455BH||ORB19960559G|
|Military Green/Gold / 47cm||08434446786051||L10447BJ||ORB22591860L|
|Military Green/Gold / 49cm||08434446786082||L10449BJ||ORB22653298L|
|Military Green/Gold / 51cm||08434446786112||L10451BJ||ORB22791778L|
|Military Green/Gold / 53cm||08434446786143||L10453BJ||ORB2241991L|
