ENVE Composites M7 Mountain Handlebar 35mm

ENVE Composites M7 Mountain Handlebar 35mm

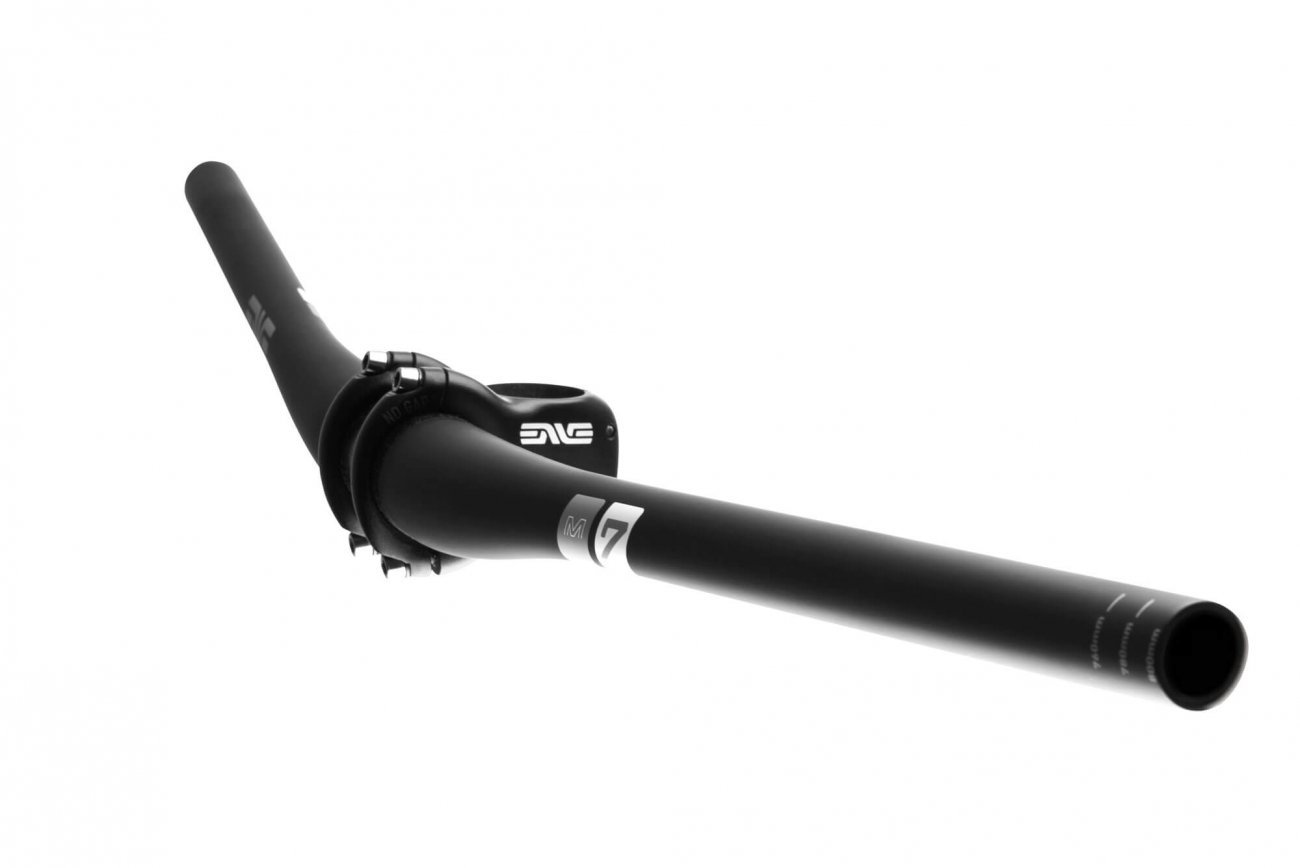

Image differs from actual product (stem sold separately)
  • Image differs from actual product (stem sold separately)
  • Image differs from actual product (stem sold separately)
  • Image differs from actual product (stem sold separately)
$190.00
Color: Black
Rise: Select rise
Clamp Diameter: 35mm
Sweep:
Width: 800mm
Please select options Unavailable

Details

An exceptionally strong carbon fiber 35mm riser bar that’s built to descend. The M7 bar is designed for the most aggressive and demanding riders. Carbon fiber is the ideal material for a gravity bar because fiber orientation and bar shape can be controlled independently and developed in unison, resulting in a tuned flex profile that cannot be achieved with aluminum. This bar is tuned to be precise and responsive while absorbing fatigue-inducing chatter and taking the sting out of the biggest hits. The M7 bar features a trail-perfect 8-degree backsweep and 4-degree upsweep for your long-travel 29er, enduro race bike, or downhill machine.

- Material: Carbon
- Weight: 230g (10mm rise); 240g (25mm rise); 245g (40mm rise)
- Bar Width (Max): 800mm
- Bar Width (Min): 780mm
- Clamp Diameter: 35mm
- Backsweep: 8 Degrees
- Upsweep: 4 Degrees
- Torque Spec: Face Plate: 5.5Nm
- Torque Spec: Controls: 5.5Nm

Part Numbers

Option UPC MPN Store SKU
35mm / Black / 10mm / 8° / 800mm 818801025302 300-1000-063 ENV59725362K
35mm / Black / 25mm / 8° / 800mm 818801025319 300-1000-064 ENV59242123K
35mm / Black / 40mm / 8° / 800mm 818801025326 300-1000-065 ENV44703125K
